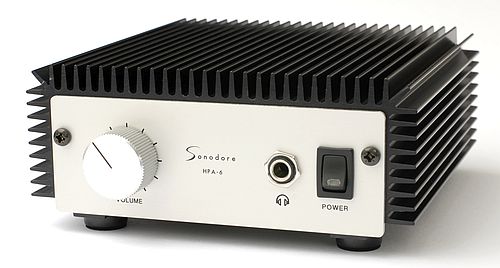

Sonodore universal Headphone Amplifier HPA-6

The Sonodore HPA-6 is a universal headphone amplifier.
The amplifier is optimized with listening tests
Tonal balance, optimal transient response and ultimate transparency are the key
parameters for the HPA-6. This result in a truly stunning sound.


Technical Specifications
Frequency response: 2.3 Hz to 100 kHz (-3dB)
THD+N: 0.001% at 1V 0.006% at 6V (1KHz, into 120Ohm )
Equivalent input noise: 1,1uV (A-weight)
Slew Rate: 25V/uS
Crosstalk: >95dB at 0-10KHz
Maximum output level: 11V
Output impedance: 3 Ohms
Maximum output current: 250mA
Input impedance: 10KOhm
DC offset : < 10mV
Headphone impedance: >25Ohm.

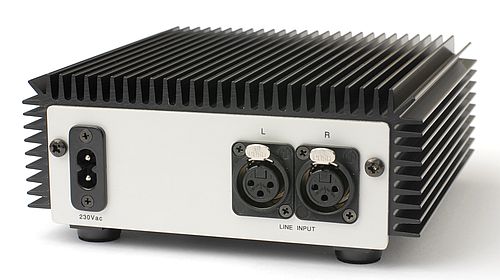

Input: 3-pin XLR female connector (unbalanced) or RCA (option)
Output: Jack 6,5mm for ordinary headphones
Power requirements: 105-120V and 210-240V, 50 to 60 Hz
Power consumption: 7W
Weight: 2 kg
Dimensions(W*H*D): 170mm 75mm 190mm
